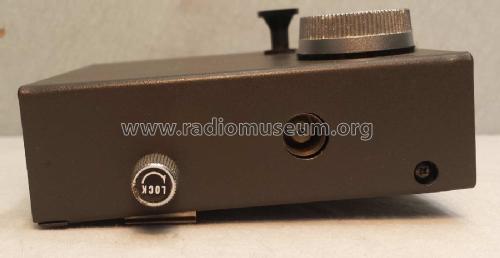

UHF-Converter VUC-5E with antenna VUA-1
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1961–1964 ?
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 297963
- Number of Transistors
- 2
- Semiconductors
- Main principle
- RF Converter/Adapter (not voltage converter)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: UHF-Converter VUC-5E with antenna VUA-1 - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 40 x 100 x 95 mm / 1.6 x 3.9 x 3.7 inch
- Notes
-
UHF Konverter zum Empfang der UHF Kanäle 21-69 für Sony TV Modelle: MicroTV, z.B. 5-202 + 5-202E + 5-303W.
Das Gerät wird rechts seitlich am TV festgeklemmt, die Verbindung erfolgt über einen 2-poligen 3,5 mm Klinkenstecker.
Die aufgesteckte Antenne VUA-1 kann auf den jeweiligen Empfangskanal durch verschieben des Schlittens optimal abgestimmt werden.
Konverter + Antenne waren in je einer separaten Transportverpackung (Kasten) untergebracht.
- Net weight (2.2 lb = 1 kg)
- 0.410 kg / 0 lb 14.4 oz (0.903 lb)
- Price in first year of sale
- 159.00 DM
- Author
- Model page created by Axel Paap. See "Data change" for further contributors.
