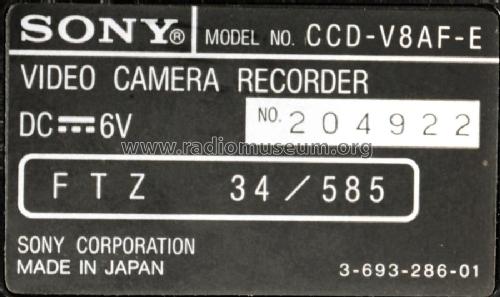

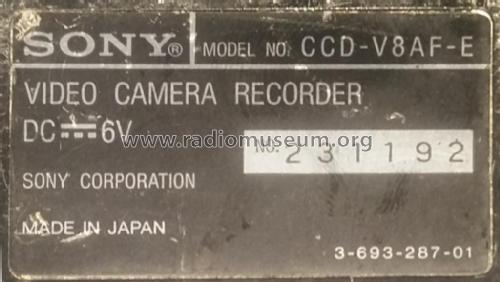

Video Camera Recorder CCD-V8AF-E

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1985
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 328778

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Video-Taperecorder/-Player
  • Power type and voltage
  • Dry Batteries / 6 Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Video Camera Recorder CCD-V8AF-E - Sony Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 400 x 230 x 140 mm / 15.7 x 9.1 x 5.5 inch
  • Notes

  • The CCD-V8AF-E is a Video 8 camcorder with.

    • infrared auto focus (AF)
    • Rotary 2-head helical scanning system
    • Video 8 format uses 8 mm tape for storing the video signal in analogue FM.
    • Lens combined 6 x power zoom
    • The main image sensor was a 250,000-pix CCD which required a minimum light level of 22 lux (f1.4).
    • Uses phase alternating line (PAL) colour encoding system, which complies CCIR standards, for 625-line analogue video systems.

    As well as dedicated ICs to provide analogue processing of video signals, this camcorder required a mode control central processing unit (CPU) µPD7503G-324 for the overall control of the camera, and MB88505 microcontroller to manage the tape transport mechanism and servos.

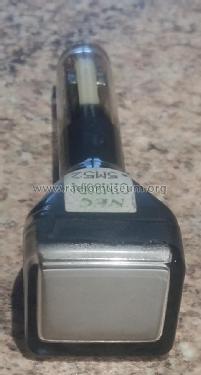

    C1M30P4 is a 1 inch monitor.

    237 transistors and diodes counted, 47 ICs and 4 quartz.

  • Net weight (2.2 lb = 1 kg)
  • 2.3 kg / 5 lb 1.1 oz (5.066 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
