Video Cassette Recorder SLV-E1000

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1998/1999

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 227879

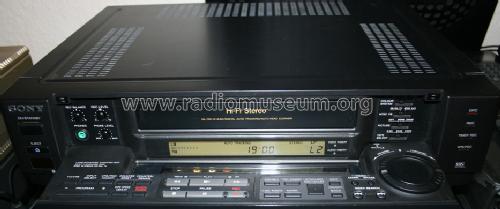

• Picture

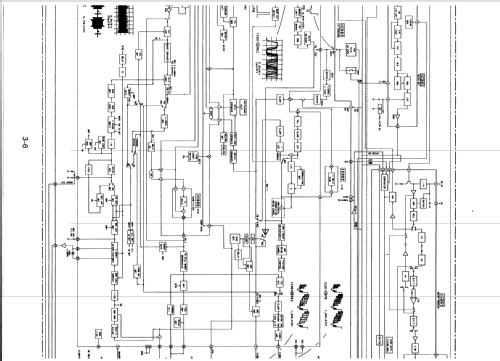

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Video Cassette Recorder SLV-E1000 - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 103 x 323 mm / 16.9 x 4.1 x 12.7 inch

• Notes

• Sony Video Cassette Recorder SLV-E1000,
  Video-Format: VHS-Standard, HiFi-Stereo, Dynamic Signal Filter (DSF),
  NTSC-Playback, Program-Assemble-Schnitt mit RCTC-Erkennung,
  Schnittcomputer (12 Schnitte), Jog-Shuttle, Front-AV-Eingang,
  Nachvertonung, 3 x Scart, VHF/UHF, Gehäusefarbe: schwarz.



  Made in France.



• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Source of data
• -- Original prospect or advert
