• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1976

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 120532

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• CT-507

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

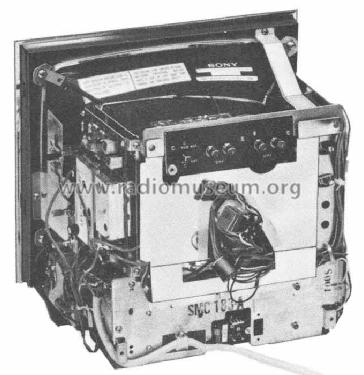

• Model: Video Monitor CVM-110UET - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 286 x 298 x 302 mm / 11.3 x 11.7 x 11.9 inch

• Notes
• S/W Fernsehgerät nach dem CCIR-System B&G mit zusätzlichem Video- und Audio-Eingang.
  Empfangsbereich:
  Westeuropa: VHF 2-12, UHF 21-69.
  Italien: VHF A-H1.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
