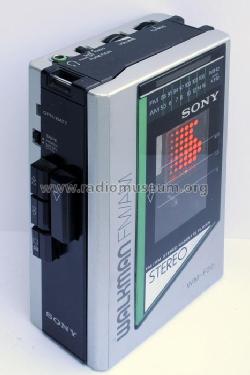

Walkman FM/AM WM-F22
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1985 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123099
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; none
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Dry Batteries / 2 × 1,5 Volt
- Loudspeaker
- - only for Earphone!
- Power out
- 0.07 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Walkman FM/AM WM-F22 - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 90 x 145 x 42 mm / 3.5 x 5.7 x 1.7 inch
- Notes
- Sony-Walkman, im Gegensatz zu den ersten Ausführungen mit FM-Stereo-/AM-Empfänger ausgestattet; Kassetten-Spieler jedoch ohne Aufnahmemöglichkeit. Betrieb mit 2 AA-Zellen (3V).
Ausgangsleistung 2× 35 mW. ICs im Zwischenfrequenzteil, im Stereo-NF-Teil (Vor- und Endverstärker getrennt) sowie zur Regelung der Drehzahl des Laufwerk-DC-Motors. Made in Malaysia.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Knut Rothstein. See "Data change" for further contributors.
