• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1986

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 132011

• Number of Tubes
• 1

• Valves / Tubes
• 02JM

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 120; 6; 4x 1,2; 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

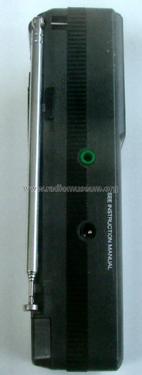

• Model: Watchman FD-2A - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 64 x 157 x 42 mm / 2.5 x 6.2 x 1.7 inch

• Notes
• Sony Watchman FD-2A; ~2"/47 mm special CRT b/w TV with US standard VHF-/UHF tuner, different body colors known. Optional magnifier lens type VCV-2, ext. antenna in, 420 g, AC operation with external adapter only.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
