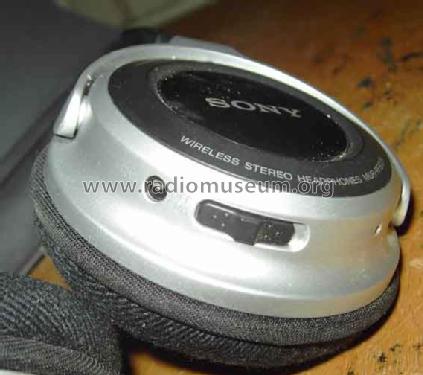

Wireless Stereo Headphones System MDR-RF800RK - MDR-RF800R & TMR-RF800R

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 2016 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 221742

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / AAA: NiMh 2× 1.2 or 2 × 1.5 / DC 12 Volt

• Loudspeaker
• - Is a Headphone or Earphone / Ø 4 cm = 1.6 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Wireless Stereo Headphones System MDR-RF800RK - MDR-RF800R & TMR-RF800R - Sony Corporation; Tokyo

• Dimensions (WHD)
• 105 x 135 x 105 mm / 4.1 x 5.3 x 4.1 inch

• Notes

• Funkkopfhörer, geschlossen, 20-20000 Hz, 100 m Reichweite, 2 Kanäle, Gewicht des Senders: 115 g,

  Two selectable channels: 863,52 MHz, 864,52 MHz, modulation FM

• Net weight (2.2 lb = 1 kg)
• 0.220 kg / 0 lb 7.8 oz (0.485 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Reinhard Riek. See "Data change" for further contributors.
