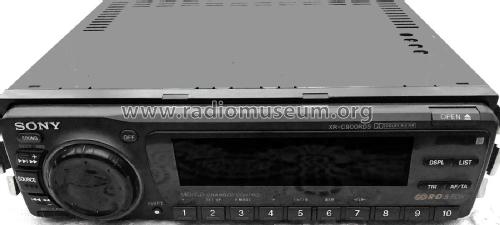

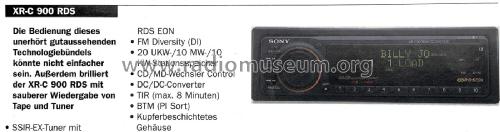

FM/MW/LW(SW) Cassette Car Stereo XR-C900 RDS

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1996
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 292931

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • PLL, Phase-locked loop; ZF/IF 450/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player; Remote Control (with wire or wireless)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM/MW/LWCassette Car Stereo XR-C900 RDS - Sony Corporation; Tokyo
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 188 x 58 x 178 mm / 7.4 x 2.3 x 7 inch
  • Notes

  • Cassette Player:
    Tape Transport Mechanim Type: MG-55R1-31
    4-track
    2-channel stereo
    auto-reverse,
    dolby B/C.

    Radio:
    Tuning range:
      MW: 531 - 1602 kHz
      LW: 153 - 281 kHz (AEP. UK Model)
      SW: 5950 - 6205 kHz (German Model)
      FM: 87,5 - 108 MHz
    Presets:
      20 FM + 10 OM + 10 OL
    RDS = Radio Data System
    EON + TP = station makes use of broadcast traffic announcement
    TIR = Traffic Information Replay
    PTY = Programme Type selection
    ATA = Automatic Tuner Activation
    AMS = Automatic Music Sensor

    Outputs:
    3 line outputs, impedance: 200 Ω
    Power aerial relay control lead
    Power amplifier control lead

    Switchable display ilumination (green or amber)
    Detachable front panel with alarm
    DSP = Digital Signal Processor
    Digital clock with Clock Time data from the RDS

    Supplied accessories
    Rotary remote (joystick) control
    Wireless remote

    Optinal Equipment
    CD/MD Changer
    XDP-U50D lets you add some effects to the sound field of the currently selected source.

    Die gelisteten und weitere Transistoren sind mehrfach vorhanden.

  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
