• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 2002 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 183894

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

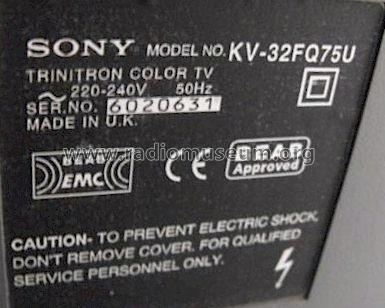

• Model: Trinitron Color TV KV-32FQ75U Ch= AE-5A, SCC-Q46B-A - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 886 x 620 x 592 mm / 34.9 x 24.4 x 23.3 inch

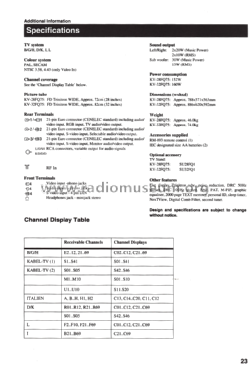

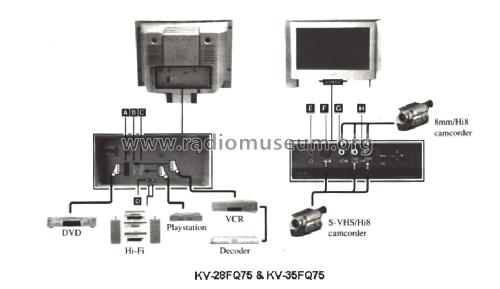

• Notes
• Sony Trinitron Color TV KV-32FQ75U, Ch= AE-5A, SCC-Q46A-A;
  ~82 cm/32" 16:9 PAL/SECAM/NTSC 3.58/4.43 100 Hz Multistandard TV, PIP, 3 x Scart, RCA & S-Video front in, phones jack, 2 x 10/20 W AF out, 160 W power consumption. optional stand SU32FQ1,
  remote control: RM-893, made in UK.
  Suffix codes:
  A for destination ET
  B for destination FR
  D for destination AEP
  E for destination ESP
  U for destination UK


• Net weight (2.2 lb = 1 kg)
• 74 kg / 162 lb 15.9 oz (162.996 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
