- Country
- Canada
- Manufacturer / Brand
- Soundmaster Equipments / Limited; Ottawa, ON
- Year
- 1956–1980 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 339727
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / Either 12 DC or 110 AC Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 25 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: LP-700-12 - Soundmaster Equipments /
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 12 x 10 x 10 inch / 305 x 254 x 254 mm
- Notes
-
Gain: 118 dB
Response: 30 to 20,000 Hz
INPUTS: 2 mic, built-in phono
OUTPUT TAPS: 4, 8, 15, 500 on two engraved five-prong sockets
POWER OUTPUT: 25 watts
BATTERY DRAIN: 4 amps on standby, 16 amps maximum
- Net weight (2.2 lb = 1 kg)
- 25 lb (25 lb 0 oz) / 11.350 kg
- Price in first year of sale
- 208.00 CAD

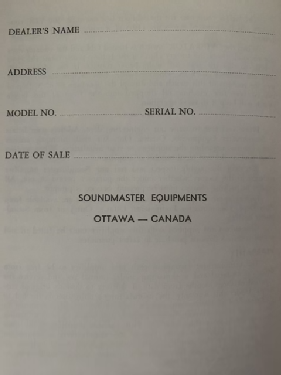

- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Allan Ferguson. See "Data change" for further contributors.
