• Country
• Germany

• Manufacturer / Brand
• Wörlein GmbH; Cadolzburg

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146503

• • alternative name: Vörlein
  • Brand: Soundmaster

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

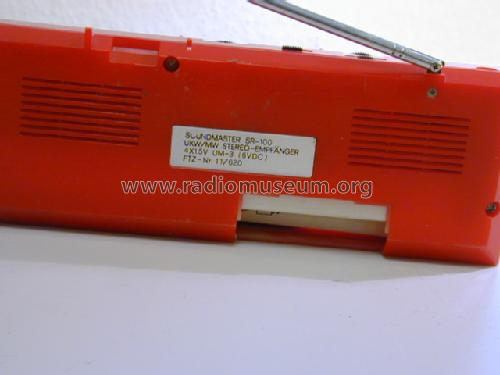

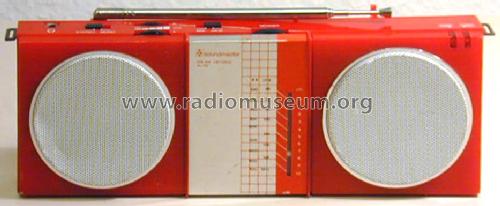

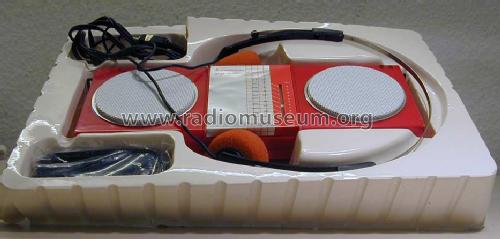

• Model: Soundmaster SR-100 - Wörlein GmbH; Cadolzburg

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 215 x 78 x 25 mm / 8.5 x 3.1 x 1 inch

• Notes
• Lautsprecher Durchmesser 2 x 5,25 cm

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
