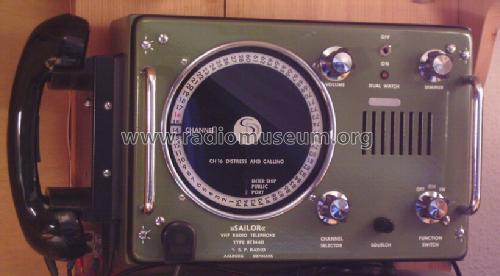

Sailor VHF Radio Telephone RT144B

SP Radio (S.P.), Sailor Marineradio; Aalborg

Data

Forum

Pictures

Collections

Country
Denmark

Manufacturer / Brand
SP Radio (S.P.), Sailor Marineradio; Aalborg

Year
1976

Category
Commercial Transmitter & Receiver (TRX not Amateur)

Radiomuseum.org ID
149385

- Brand: Sailor

Schematics

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 580985) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (3)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 580986) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (3)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 580991) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (3)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 655897) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (3)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 580258) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (1)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 580290) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (1)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 1091125) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (1)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 1091126) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (1)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 1091127) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (1)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 1091128) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (1)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 1091133) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (1)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 1586165) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (2)

Sailor VHF Radio Telephone RT144B; SP Radio S.P., (ID = 1586166) Commercial TRX — SP Radio S.P., Sailor VHF Radio Telephone RT144B (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Transceiver; ZF/IF 10700/400 kHz

Wave bands
Wave Bands given in the notes.

Power type and voltage
Storage Battery for all (e.g. for car radios and amateur radios) / 12 or 24 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

Power out
3.5 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: Sailor VHF Radio Telephone RT144B - SP Radio S.P., Sailor

Shape
Miscellaneous shapes - described under notes.

Dimensions (WHD)
320 x 220 x 165 mm / 12.6 x 8.7 x 6.5 inch

Notes
UKW-Funktelefon für Seefunkanwendungen, Frequenzmodulation. Bestückt mit 55 plus 5 Kanälen im Bereich 155 bis 163,2 MHz (Synthesizer), Zweikanalüberwachung. Sendeleistung zwischen 25 und 1 Watt umschaltbar. Spritzwasserdichtes Stahlblechgehäuse für Wandmontage (spezielle Halterung).

Hinterlegter Schaltplan ist für die RT144C.

Net weight (2.2 lb = 1 kg)
9 kg / 19 lb 13.2 oz (19.824 lb)

Mentioned in
- - Manufacturers Literature

Author
Model page created by Heinz Höger. See "Data change" for further contributors.
