SSB-Transmitter Sailor T126

• Country
• Denmark

• Manufacturer / Brand
• SP Radio (S.P.), Sailor Marineradio; Aalborg

• Year
• 1973 ??

• Category
• Commercial Transmitter (TX not Transceiver)

• Radiomuseum.org ID
• 212220

• • Brand: Sailor

• Picture

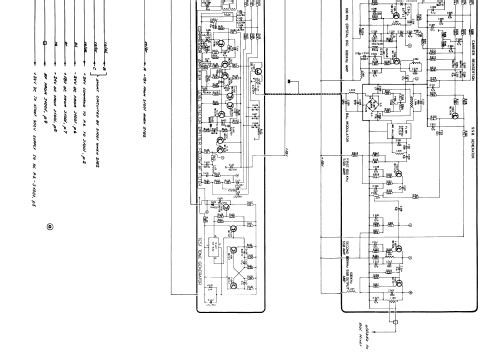

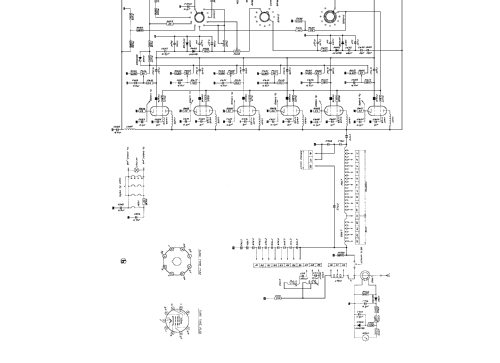

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PL83 TT22 TT22 TT22 TT22 TT22 TT22

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transmitter

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 24 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: SSB-Transmitter Sailor T126 - SP Radio S.P., Sailor

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 500 x 300 x 340 mm / 19.7 x 11.8 x 13.4 inch

• Notes

• Marine radio transmitter, frequency range 1,6 - 4,2 MHz, 31 channels (plug-in crystals).
  Modes A3J, A3A, A3H and alarm signal transmitting. Power supplies also for 110/220 or 110 - 237 Volts. Intended for wall mounting in helm or radio room.

  Technically identical with Einseitenband-Sender 7183 of DEBEG.

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.
