Sparton 10-21 Herringbone Radio-Phonograph early
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 80231
Click on the schematic thumbnail to request the schematic as a free document.

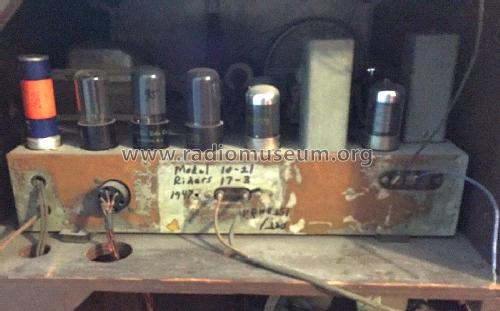

- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 10-21 Herringbone Radio-Phonograph [early] - Sparks-Withington Co., Sparton
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 36 x 37 x 18 inch / 914 x 940 x 457 mm
- Notes
-

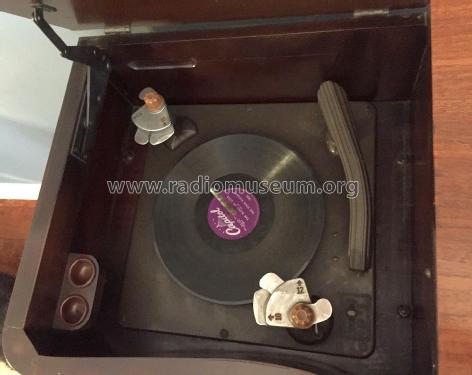

The Phonograph plays 78 RPM, 10" & 12" records. The magic eye is a 6AF6G and the radio has 3 bands and possibly a rotating antenna.
