Sparton 134 Triolian Ch= 46A
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58516

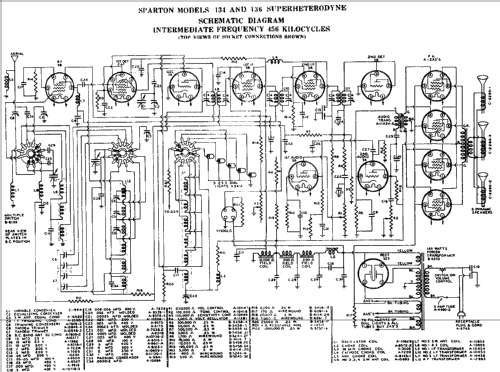

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 30 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 134 Triolian Ch= 46A - Sparks-Withington Co., Sparton

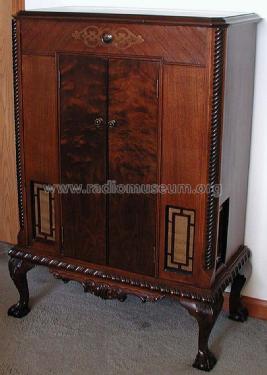

- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

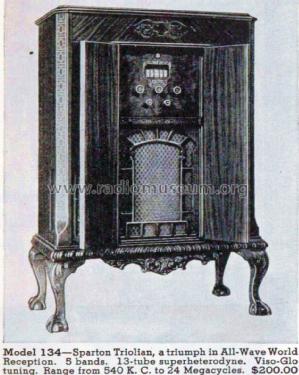

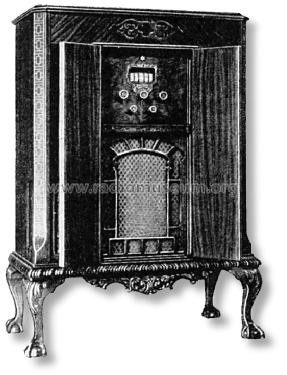

The Sparton models Triolian use three electrodynamic speakers. This model 134 has a push-pull audio amplifier using 2 x 2 type 2A5 tubes in parallel. The center speaker measures 12" in diameter, the two others 8". The model 134 and model 136 share the same Rider's schematic and have 5 tuning bands with a range from 540 kHz up to 24 MHz. The bands change in color of background light to each separate band as bandswitch is changed. The model 136 has a more modern cabinet and both are "the top of the line" in that season.
The VisoGlo tuning indicator VG-1 is extremely rare, even in the literature it is nearly not noticed. See the article here about season 1934/35.
- Price in first year of sale
- 200.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition (Rider's 6-5, 6-6)
