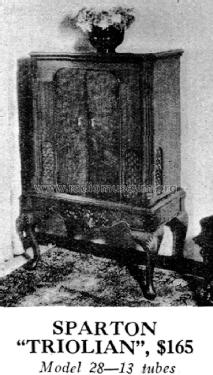

Sparton 28 Triolian
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1932–1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58568
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage; ZF/IF 172.5 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 100-130 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 28 Triolian - Sparks-Withington Co., Sparton
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 31.5 x 45.25 x 16 inch / 800 x 1149 x 406 mm
- Notes
-
Bandfilter input circuits. Push-pull audio amplifier using 2 x 2 type 47 tubes in parallel. Inter-station noise suppressor. Three electrodynamic speakers, one (center) of 12 inch and the two of 8 inch diameter.
- Price in first year of sale
- 165.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference

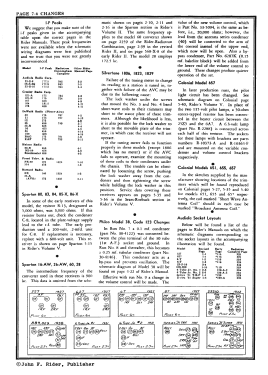

- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (Rider's 4-6)
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (June 1933 page 19.)
- Literature/Schematics (3)
- Sparton Radio Service Manual (Sparton Manual 1, Bulletin 48-1, 2, 3 Bulletin 31-3, 4)
