• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 58602

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BE6 12AT7 6BA6 6BA6 6AL5 6AV6 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 456/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

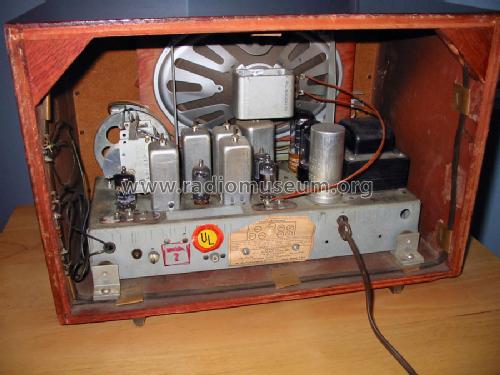

• Model: Sparton 380 Ch= 8L3 - Sparks-Withington Co., Sparton

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 10 x 8 inch / 406 x 254 x 203 mm

• Notes
• Color= Mahogany.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 23 (last), covering up to 1954
