- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58617

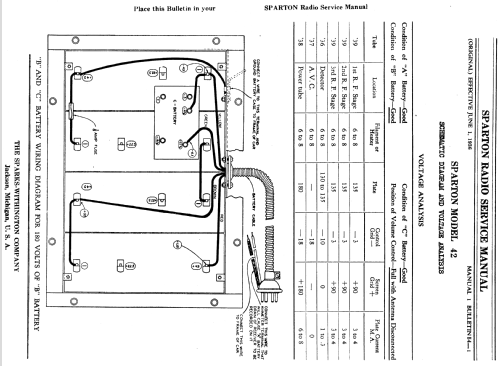

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- TRF without regeneration; 1 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / -63 & -45 & 6 & 90 & 135 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- from Radiomuseum.org
- Model: Sparton 42 - Sparks-Withington Co., Sparton
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Mentioned in
- Rider's 8-8
- Literature/Schematics (1)
- Sparton Radio Service Manual (Sparton Manual 1, Bulletin 54-1, 2 Bulletin 39-3, 4)
