Sparton 538-X

Sparks-Withington Co., (Sparton); Jackson, Michigan

Data
Forum
Pictures
Collections

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 58692

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sparton 538-X - Sparks-Withington Co., Sparton
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Export version. Tuning eye.
  • External source of data
  • Ernst Erb

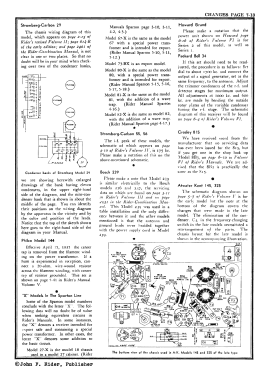

  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
  • Mentioned in
  • Rider's 9-5, 9-6
