• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 58747

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• C-484 or C-485 C-484 or C-485 C-484 or C-485 C-484 or C-485 C-484 or C-485 C-484 or C-485 C-182B or C-183 C-182B or C-183 C-280

• Main principle
• TRF without regeneration; 1 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 100-130 Volt

• Loudspeaker

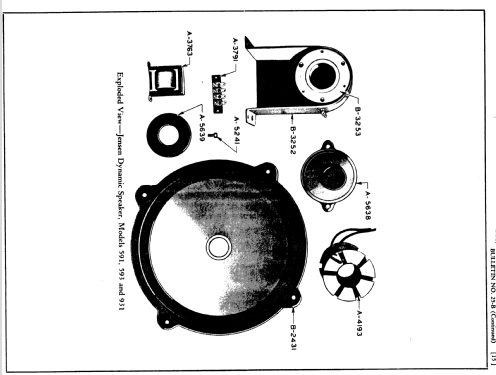

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sparton 593AC - Sparks-Withington Co., Sparton

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• One dial (primary tuning control knob) . Push-pull audio amplifier.

• Price in first year of sale
• 115.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (Rider's 2-52)

• Literature/Schematics (1)
• Sparton Radio Service Manual (Sparton Manual 1, Bulletin 18-1, 2, Bulletin 6-3, 4)
