Sparton 5-AW-06 Ch= 5-06
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58716
Bild ebay Verkäufer:annikaa2108
Sams Photofact Folders reference picture.
RECONSTRUCTED LABEL
RECONSTRUCTED LABEL

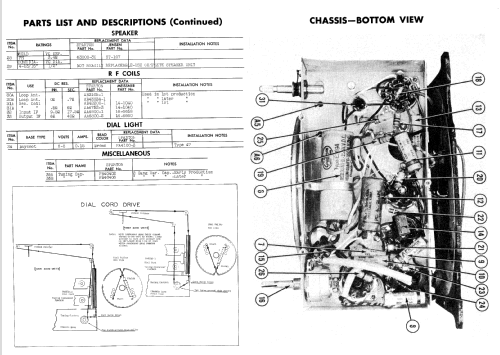

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 4.81 inch = 12.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sparton 5-AW-06 Ch= 5-06 - Sparks-Withington Co., Sparton
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- Self contained loop antenna.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios (6th edition)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Folder 464-17 date 9-46)
- Other Models
-
Here you find 817 models, 365 with images and 754 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sparks-Withington Co., (Sparton); Jackson, Michigan
Collections
The model Sparton 5-AW-06 is part of the collections of the following members.
Forum contributions about this model: Sparks-Withington Co: Sparton 5-AW-06 Ch= 5-06
Threads: 1 | Posts: 12
I've been working on a Sparton 5-aw-06. The problem i'm having is very low volume. all the local am chanel's come in strong, everything seems to work the way it should except low out put on the volume. I've re caped the radio, checked all windings, tubes,and risisters all seam within tolerance. any suggestions?
Bill Boles, 29.Aug.12
