• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75680

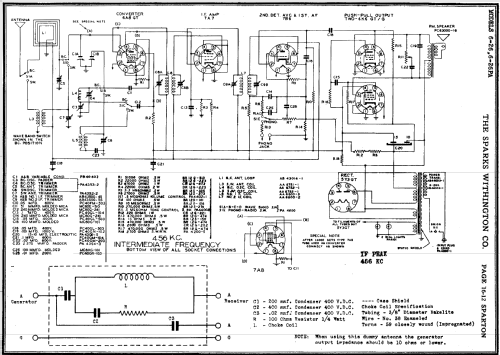

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• C-201A C-201A C-201A C-201A C-201A C-201A or C-112A

• Main principle
• TRF without regeneration

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sparton 6-26 Battery operated - Sparks-Withington Co., Sparton

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• The battery operated Sparton model 6-26 has a one dial (primary tuning control knob) operation. The ad September 1927 of "Radio Retailing" page 15 includes the models 6-15, AC 6-15, 6-26 and AC-7. The model shows a slightly different face in the ad between July and September 1927, but in July it might have been only a make up for photography.
  See also the article here about different radio seasons.

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (September 1927, page 15, full sized ad)

• Literature/Schematics (2)
• Sparton Radio Service Manual (Sparton Manual 1, Bulletin 5-1,2, Bulletin 1-3)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
