Sparton 750-X
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1932 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58891
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 172.5 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110 to 130 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 750-X - Sparks-Withington Co., Sparton
- Shape
- Console with any shape - in general
- Notes
-
The Sparton 750-X is an AC operated 10 tube BC band receiver. Has a band filter input circuit and push-pull output.
The schematic used for this model is also used for models 17, 18, 28-X, 111-X, 750-A, 870-A and 870-X.
- External source of data
- Ernst Erb
- Circuit diagram reference

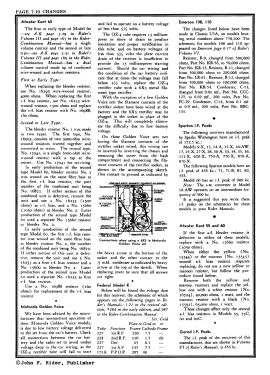

- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Literature/Schematics (1)
- Sparton Radio Service Manual (Sparton Manual 1, Bulletin 31-1, 2, 3, 4)
