Sparton 80-X

Sparks-Withington Co., (Sparton); Jackson, Michigan

Data
Forum
Pictures
Collections

  • Year
  • 1934/1935
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79859

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sparton 80-X - Sparks-Withington Co., Sparton
  • Shape
  • Console with any shape - in general
  • Notes

  • The model 80-X is most probably the domestic version of the model 80. There is also an early version with 78 as 1st det. The dealers brochure shows data and picture for this, but Rider's Sparton 5-15 etc. shows a 6A7 as 1st det. for the probably newer model 80 which might also have an other knob arrangement. The 80 models offer 4 bands, from broadcast 540 kHz right through SW to 20 MHz. See the article here about season 1934/35.

    There are similar cabinets with chassis 83: one with the VisoGlo tuning indicator and the other without but in principle the same chassis.

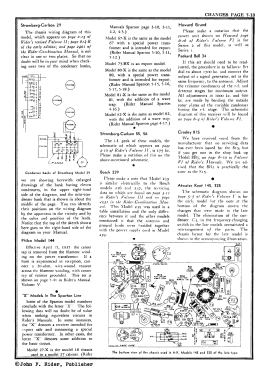

  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
