Sparton 141XX Ch= 8W10
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 142543
Sams Photofact Folders

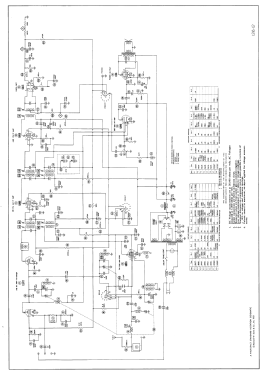

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 141XX Ch= 8W10 - Sparks-Withington Co., Sparton
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Sparks Model Sparton 141XX is an AC Operated 8 Tube AM-FM Superheterodyne Receiver with Loop Antenna.
Alternative assembly: 6BA6 instead 6AU6 1st FM IF-AM IF Amp and 6BA6 instead 6AU6 FM 2nd IF Amp.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 126 Folder 12 dated 3-51)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
