Sparton 30-A Ensemble
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 229069

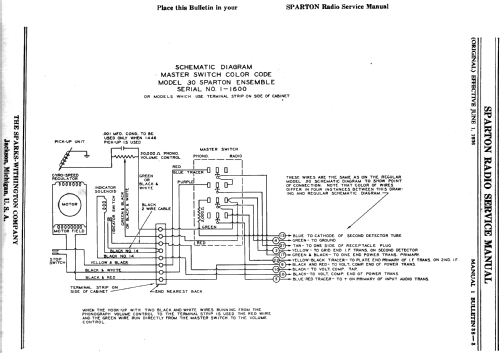

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 172.5 kHz; 1 AF stage(s)
- Tuned circuits
- 10 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 100 to 130 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 30-A Ensemble - Sparks-Withington Co., Sparton
- Shape
- Console with any shape - in general
- Notes
-
Automatic Phonograph. A green folder from Sparton Canada shows at least the models 6, 9A, 10, 15, 24, 26, 30, 35, 40 and the Sparton Visionola. Visionola was described early 1931.
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Literature/Schematics (1)
- Sparton Radio Service Manual (Sparton Manual 1, Bulletin 38-1 to -8 Bulletin 33-3, 4)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
