Sparton 4921 Ch= 24TM10, 3TM10, 6S10
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 354984

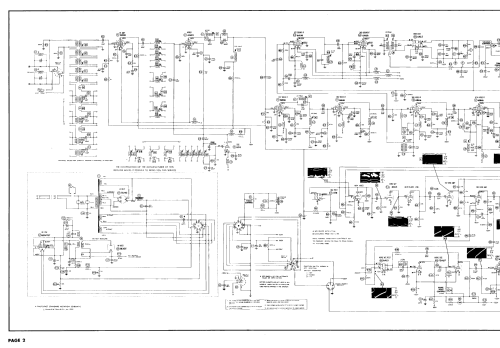

Click on the schematic thumbnail to request the schematic as a free document.

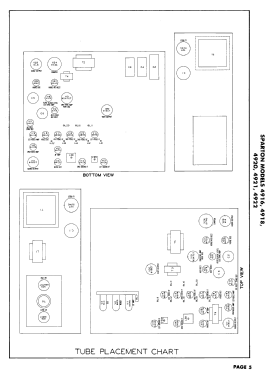

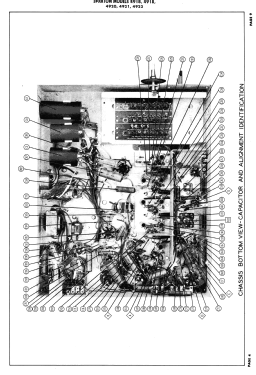

- Number of Tubes
- 34
- Valves / Tubes
- 6BH6 6AG5 6C4 6BH6 6BH6 6BH6 6BH6 6AL5 6AU6 6AK6 6AL5 6T8 6AU6 6AU6 6AL5 6AT6 6V6GT 6J6 6SN7GT 6V6GT 6AL5 12AU7 6L6 5V4G 6SN7GT 1B3GT 5U4G 12AT7 6BE6 6BA6 6BA6 6AL5 6AV6 10BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 4921 Ch= 24TM10, 3TM10, 6S10 - Sparks-Withington Co., Sparton
- Shape
- Console with any shape - in general
- Notes
-
Sparton model 4921 is a 10” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 24TM10, power chassis 3TM10, radio chassis 6S10, TV-AM-FM-phono-combination receiver, VHF tuner 19251 and picture tube 10BP4.
