• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 346220

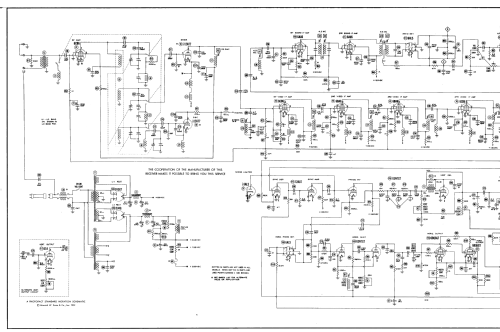

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• 6CB6 12AT7 or 12AV7 6CB6 6BA6 6BA6 6CB6 6AL5 6AU6 6AH6 6AU6 6AU6 6AL5 6AT6 6V6GT 12AU7 6SN7GT 6V6GT or 6S4 6AL5 6SN7GT 6BQ6GT 6BQ6GT 6W4GT 1B3GT 5Y3GT 5U4G 16KP4 or 16RP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Sparton 5076BB Ch= 26SS160B - Sparks-Withington Co., Sparton

• Notes

• Sparton model 5076BB is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 26SS160B, VHF tuner not specified and picture tube 16KP4 or 16RP4.





• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 128 Folder 13 dated 3-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
