• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1925/1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226721

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• C-201A C-201A C-201A C-201A C-201A or C-112A

• Main principle
• TRF without regeneration; 2 AF stage(s); Neutrodyne

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

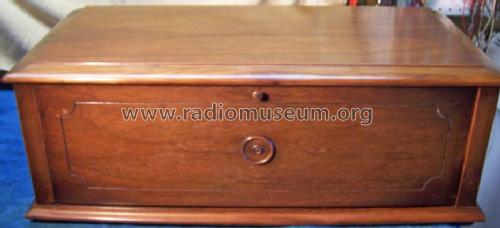

• Model: Sparton 5-26 table model [TWO tuning knobs] - Sparks-Withington Co., Sparton

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 28 x 10 x 12.5 inch / 711 x 254 x 318 mm

• Notes

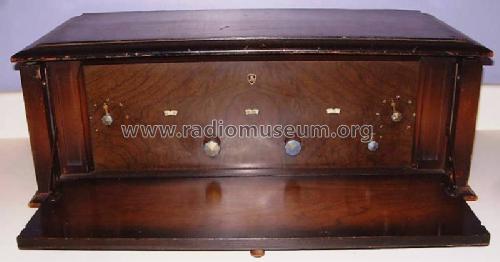

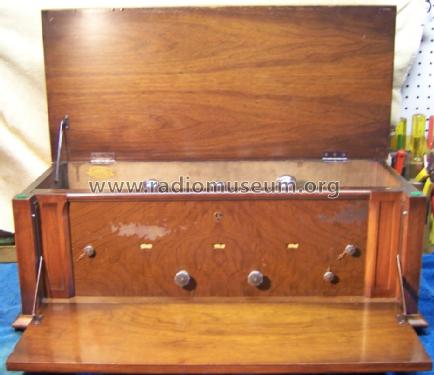

• For model 5-26, Sparks-Withington made a cabinet version (table model) and a Consolette version. The early version has THREE primary tuning knobs, but soon they have ganged two capacitors together - and those models offer TWO tuning knobs. Pictures should be according: table model 3 tuning knobs, table model 3 tuning knobs, Consolette 3 tuning knobs, Consolette 2 tuning knobs. All versions of model 5-26 have three scales! Lift top and fold down front, upper center shows the sparton logo.
  By removing wire jumpers, the radio can accomodate a power tube 112A - or later the 171A, with additional bias voltage and higher anode voltages (135 or 180 volts). The list "The quantity and types of tubes used in Sparton receiving sets" from 1937 or later names the tubes 01A which are much later dome shaped tubes, not the original tube line up! Original is: C-201A C-201A C-201A C-201A C-201A or C-112A.
  See also the article here about different radio seasons.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Price in first year of sale
• 83.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
