Sparton 620A
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228405

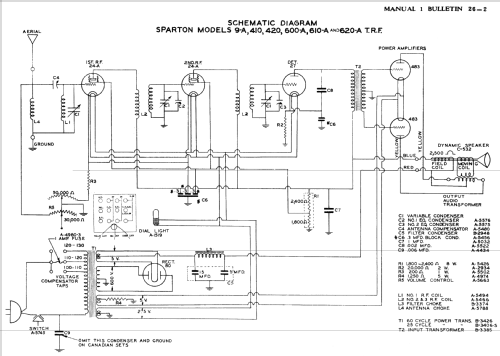

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- TRF without regeneration; 1 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 100-130 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 620A - Sparks-Withington Co., Sparton
- Shape
- Console with any shape - in general
- Notes
-
Push-pull audio amplifier.
- Price in first year of sale
- 62.00 $
- Literature/Schematics (1)
- Sparton Radio Service Manual (Sparton Manual 1, Bulletin 26-1,2,3)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
