• Country
• United States of America (USA)

• Manufacturer / Brand
• Spartan, Div. of Magnavox

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 318330

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12BE6 12BA6

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Chassis Ch= CR-738 - Spartan, Div. of Magnavox

• Shape
• Chassis only or for «building in»

• Notes

• Spartan chassis CR-738 is an externally powered AM tuner.





• Literature/Schematics (1)

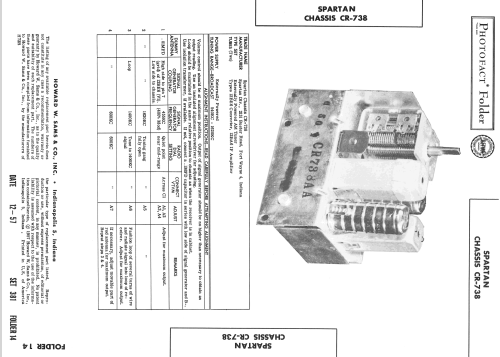

• Photofact Folder, Howard W. SAMS (Set 381 Folder 14 dated 12-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
