• Country
• Canada

• Manufacturer / Brand
• Sparton of Canada; London, ON

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 305753

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

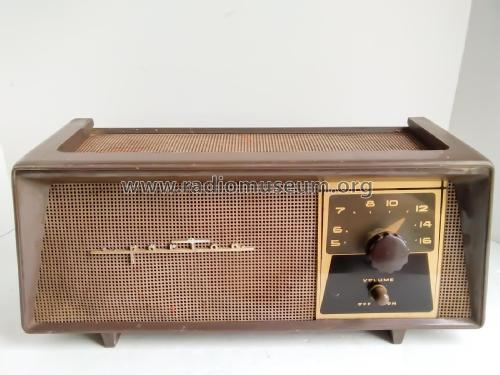

• Model: 50253 - Sparton of Canada; London, ON

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15 x 6.5 x 5.75 inch / 381 x 165 x 146 mm

• Notes

• The Sparton model 50253 is a 5-tube AC/DC table radio.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1953 Supplement 29)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
