Eldorado 9G1-P
Sparton of Canada; London, ON
- Country
- Canada
- Manufacturer / Brand
- Sparton of Canada; London, ON
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337866

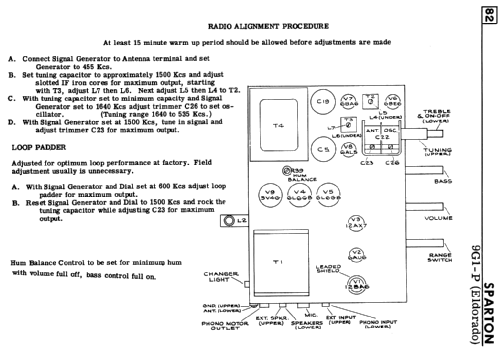

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 4 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 3 Loudspeakers
- from Radiomuseum.org
- Model: Eldorado 9G1-P - Sparton of Canada; London, ON
- Notes
-
The Sparton model 9G1-P Eldorado is a 9-tube combination radio and phonograph.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1957-1958 Supplement 42)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
