• Country
• Canada

• Manufacturer / Brand
• Sparton of Canada; London, ON

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 252575

• Number of Tubes
• 11

• Valves / Tubes

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 11548-FMAC The Carnegie Hall - Sparton of Canada; London, ON

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 38 x 33 x 18.125 inch / 965 x 838 x 460 mm

• Literature/Schematics (3)

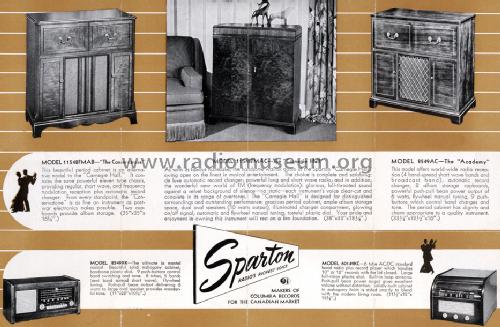

• -- Original prospect or advert (The Sparton Folder.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
