• Country
• Canada

• Manufacturer / Brand
• Sparton of Canada; London, ON

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179105

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

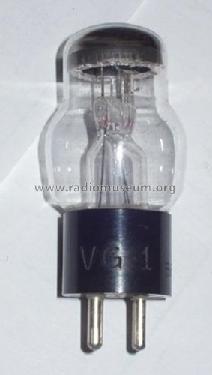

• 78 6A7 78 75 VG-1 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 345 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

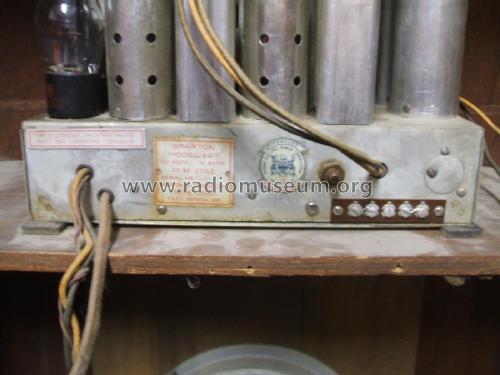

• Model: 467B - Sparton of Canada; London, ON

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada schematics Sparton page 25

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
