- Country
- Canada
- Manufacturer / Brand
- Sparton of Canada; London, ON
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180289

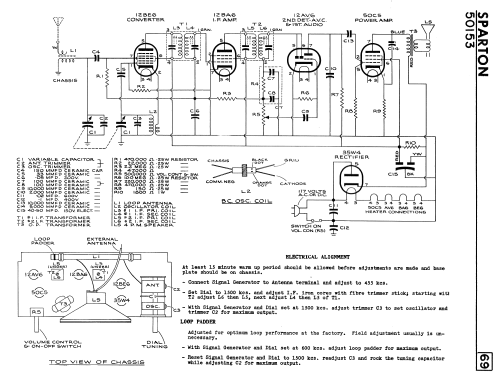

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 50153 - Sparton of Canada; London, ON
- Shape
- Tablemodel, with any shape - general.
- Notes
- Canada Supplements.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1953 Supplement 29, P.69)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
