• Country
• Canada

• Manufacturer / Brand
• Sparton of Canada; London, ON

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180252

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117V AC/DC / 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

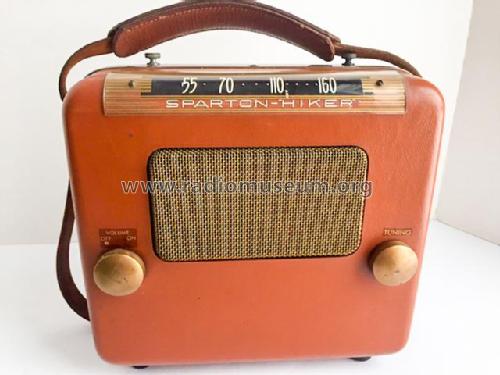

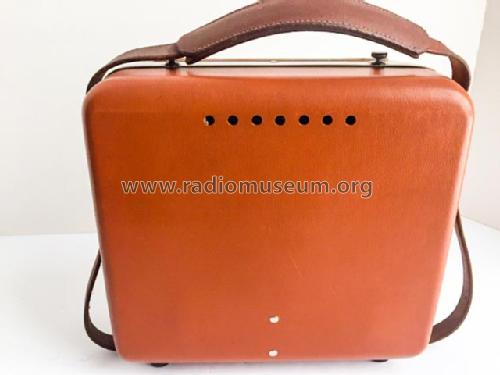

• Model: 5950 "Hiker" - Sparton of Canada; London, ON

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9.5 x 8.5 x 4.75 inch / 241 x 216 x 121 mm

• Notes
• Canada Supplements.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Supplements Sparton page 87

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 298 models, 120 with images and 265 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sparton of Canada; London, ON
