• Country
• Canada

• Manufacturer / Brand
• Sparton of Canada; London, ON

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180045

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6F6G 6E5 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

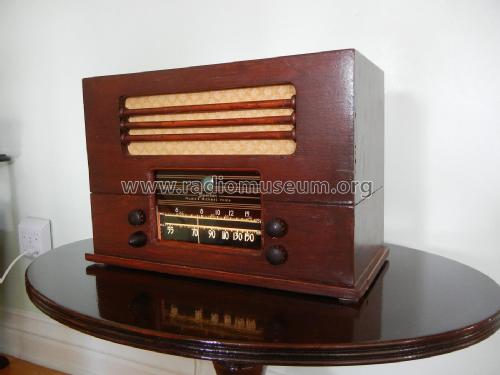

• Model: 6148 - Sparton of Canada; London, ON

• Notes
• Built in loop antenna.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Schematics Sparton page 102

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
