- Country
- Canada
- Manufacturer / Brand
- Sparton of Canada; London, ON
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180113
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

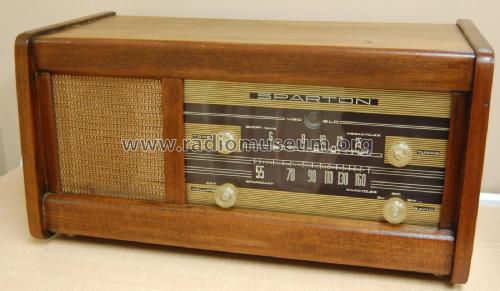

- Model: 6149 - Sparton of Canada; London, ON
- Dimensions (WHD)
- 22 x 11 x 10.5 inch / 559 x 279 x 267 mm
- Notes
- Built in loop antenna.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Canada schematics Sparton page 113
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
