• Country
• Canada

• Manufacturer / Brand
• Sparton of Canada; London, ON

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179789

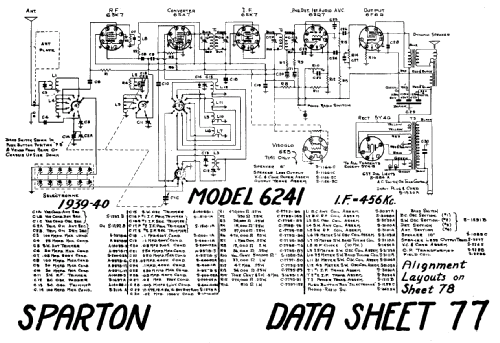

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6F6G 5Y4

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6241 - Sparton of Canada; London, ON

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)

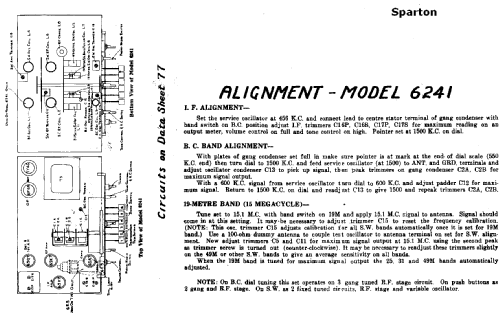

• Canada schematics Sparton page 77

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
