• Country
• Canada

• Manufacturer / Brand
• Sparton of Canada; London, ON

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179417

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6F6G 6E5 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 25 - 60Hz; 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

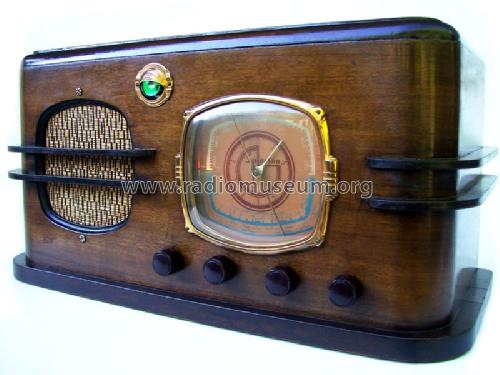

• Model: 68 [table] - Sparton of Canada; London, ON

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 22 x 10.5 x 10 inch / 559 x 267 x 254 mm

• Net weight (2.2 lb = 1 kg)
• 12.1 kg / 26 lb 10.4 oz (26.652 lb)

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Schematics Sparton page 54

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
