• Country
• Germany

• Manufacturer / Brand
• SPAUN electronic GmbH & Co. KG; Singen

• Year
• 2000 ??

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 267914

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Radio Frequency Amplification only

• Wave bands
• SAT-IF

• Power type and voltage
• Alternating Current supply (AC) / 200-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

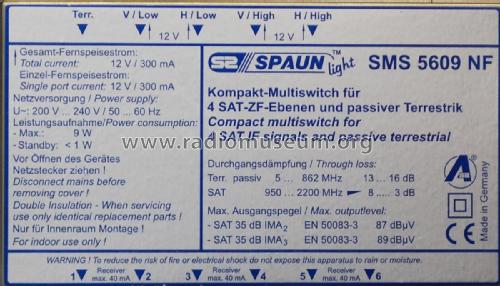

• Model: Kompakt-Multiswitch SMS 5609 NF - SPAUN electronic GmbH & Co. KG

• Dimensions (WHD)
• 300 x 130 x 45 mm / 11.8 x 5.1 x 1.8 inch

• Notes

• Kompakt-Multiswitch SMS 5609 NF für 4 Sat-ZF-Ebenen und Terrestrisch.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.

• Other Models

• Here you find 11 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
