Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1937 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 59166

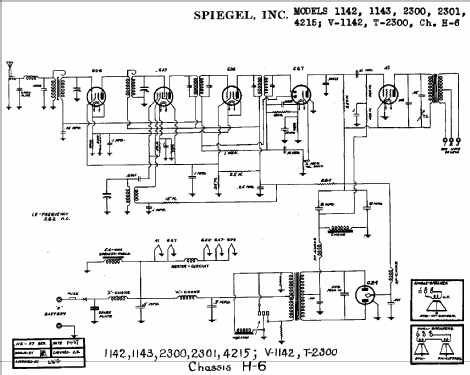

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 262 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 1142 Ch= H6 - Spiegel Inc. Continental;
- Notes
- Vibrator for +B. 1 or 2 speakers possible.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)
- Riders 12-11
- Other Models
-
Here you find 1279 models, 552 with images and 1043 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Spiegel Inc. (Continental); Chicago
