- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1942 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 222396
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 174B - Spiegel Inc. Continental;
- Shape

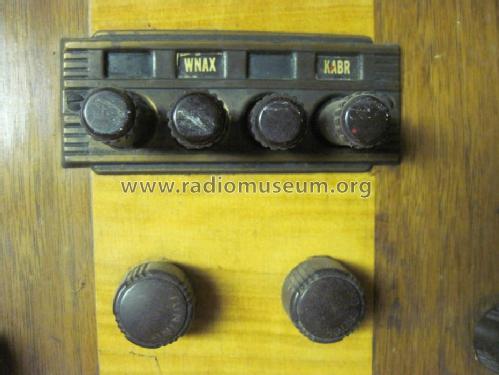

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 21 x 10 x 11 inch / 533 x 254 x 279 mm
- Notes
- Radio model marked as 174 but chassis has stamp 174B. Stock number marked as 7100. Spiegel Schematic Z7100 in Riders 13-29 matches this model. Per schematic, uses 6 or 8 inch speaker.
- Literature/Schematics (1)
- Rider's Perpetual, Volume 13 = 1942 and before (Riders 13-29)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
