Air Castle MP1954 Ch= 39B
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1935–1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 59235

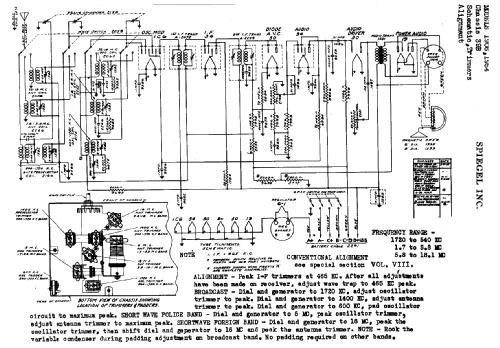

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Magnetic loudspeaker (reed) generic. / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Castle MP1954 Ch= 39B - Spiegel Inc. Continental;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 20.5 x 36.5 x 10.25 inch / 521 x 927 x 260 mm
- Notes
- 6 or 8 inch speaker.
- Price in first year of sale
- 49.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Spiegel Catalogs (Aircastle) (Fall/Winter 1935, No. 140, page 305.)
- Literature/Schematics (1)
- Riders 10-22
