2018 Ch= 40

Spiegel Inc. (Continental); Chicago

Data
Forum
Pictures
Collections

  • Year
  • 1939 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 59261

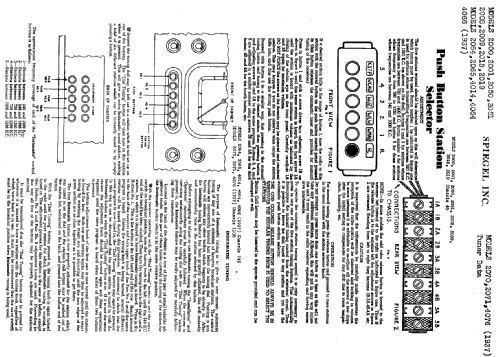

Click on the schematic thumbnail to request the schematic as a free document.

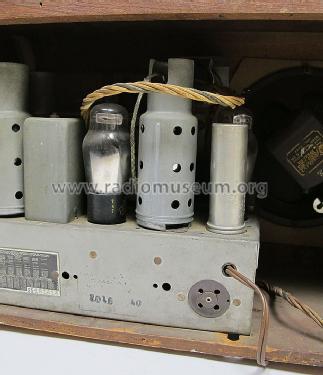

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

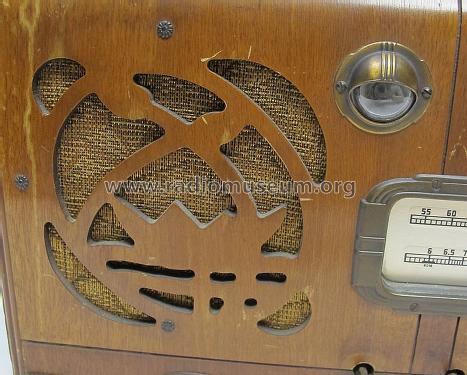

  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 2018 Ch= 40 - Spiegel Inc. Continental;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 17 x 10.25 x 7.8 inch / 432 x 260 x 198 mm
  • Notes

  • The Spiegel 2018 is an AC operated 6 tube BC and SW band receiver.  Has tuning eye and tone control.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
  • Literature/Schematics (1)
  • Riders 10-17 , 10-18
