Air Castle TP2100 Ch= 109B

Spiegel Inc. (Continental); Chicago

Data
Forum
Pictures
Collections

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 59288

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage and/or dry batteries / 135 & 3 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic. / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Air Castle TP2100 Ch= 109B - Spiegel Inc. Continental;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 20.75 x 12.25 x 10 inch / 527 x 311 x 254 mm
  • Notes

  •

     Model   Differences
     TP2100   Battery operated
     TP2101   Battery operated with all-wave doublet antenna system
     TP2102   With 1000-hour Battery Kit
     TP2103   With 1000-hour Battery Kit and all-wave doublet antenna system

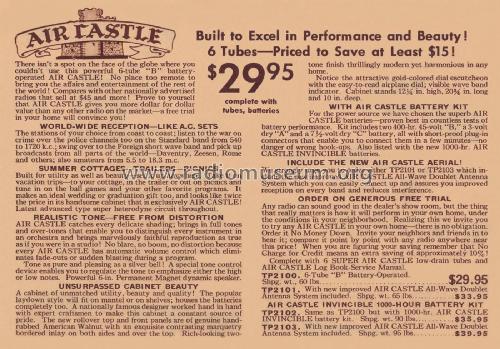

  • Price in first year of sale
  • 29.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
  • Literature/Schematics (1)
  • Riders 10-25 , 10-26
