Air Castle TP2215 Ch= 145E

Spiegel Inc. (Continental); Chicago

Data
Forum
Pictures
Collections

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 59323

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Air Castle TP2215 Ch= 145E - Spiegel Inc. Continental;
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 16 x 20 x 11.25 inch / 406 x 508 x 286 mm
  • Notes

  • Farm radio. Vibrator for +B.

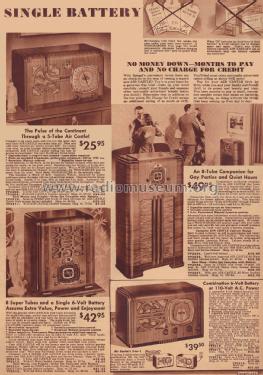

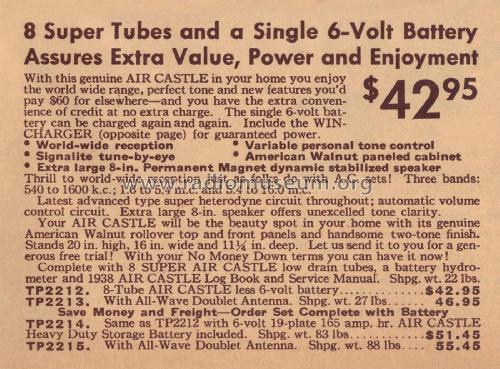

     Model  Differences
     TP2212  Battery operated
     TP2213  Battery operated with all-wave doublet antenna system
     TP2214  With 6-volt battery included
     TP2215  With 6-volt battery and all-wave doublet antenna system included



  • Price in first year of sale
  • 55.45 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
  • Literature/Schematics (1)
  • Riders 9-18
