Air Castle TP2221 Ch= X-23

Spiegel Inc. (Continental); Chicago

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 59325

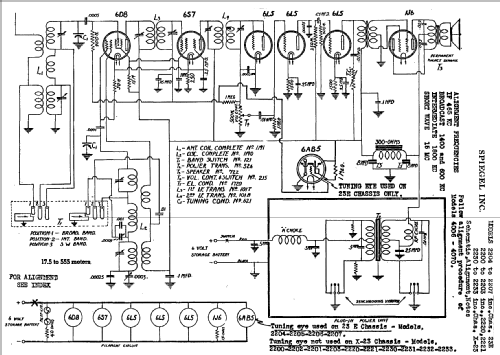

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic. / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Air Castle TP2221 Ch= X-23 - Spiegel Inc. Continental;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 20 x 14 x 14 inch / 508 x 356 x 356 mm
  • Price in first year of sale
  • 58.50 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
  • Literature/Schematics (1)
  • Riders 10-31 , 10-36
