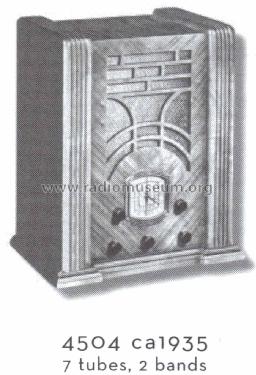

Air Castle 4504 Ch= 190
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 59414
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 105 - 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Castle 4504 Ch= 190 - Spiegel Inc. Continental;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 15 x 17 x 10.5 inch / 381 x 432 x 267 mm
- Notes
-
Push-pull output.
- Price in first year of sale
- 34.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Cathedral & Tombstone Radios (page 37.)
- Literature/Schematics (1)
- Riders 11-20
- Literature/Schematics (2)
- Spiegel Catalogs (Aircastle) (Spring/Summer 1935, No. 139, page 150.)
